An electrical box is the unsung hero of your home’s wiring system, protecting connections, preventing fires, and ensuring compliance with safety codes. Whether you’re installing a new light fixture or rewiring a room, understanding electrical boxes is crucial for a safe and efficient setup.
1. What Is an Electrical Box and Why Does It Matter?
An electrical box, also known as a junction box, is a protective enclosure that houses wire connections, switches, outlets, or fixtures. It serves three critical roles:
-
Safety: Contains sparks or heat from faulty wiring, reducing fire risks.
-
Organization: Keeps wires neatly secured and accessible for future repairs.
-
Code Compliance: Meets national and local building regulations, which often mandate their use for all electrical connections.
For example, loose wires outside a box can overheat and ignite nearby materials—a risk easily avoided with proper installation.
2. Types of Electrical Boxes and Their Uses
Not all electrical boxes are interchangeable. Choosing the right type depends on your project:
A. Plastic vs. Metal Boxes
-

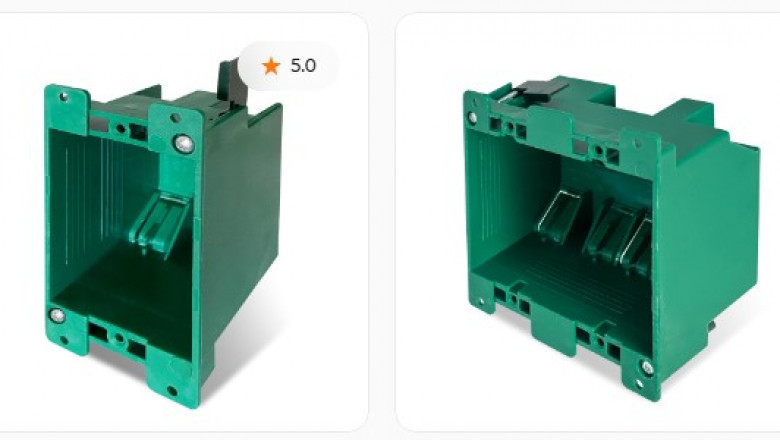

Plastic (PVC): Lightweight, affordable, and resistant to corrosion. Ideal for indoor, non-metallic cable (NM) wiring in dry areas like living rooms.
-
Metal (Steel or Aluminum): Durable and fire-resistant. Required for commercial buildings or exposed wiring in garages or basements.
B. Box Designs for Specific Applications
-
New Work Boxes: Designed for new construction, these attach directly to wall studs or ceiling joists before drywall is installed.
-
Old Work Boxes: Used for renovations, these feature adjustable clamps to secure to existing drywall.
-
Weatherproof Boxes: Built with gaskets and sealed covers for outdoor outlets or pool areas.
-
Ceiling Fan-Rated Boxes: Reinforced to support heavy fixtures and withstand vibration.
3. How to Choose the Right Electrical Box
A. Match the Box to the Load
Heavy fixtures like ceiling fans or chandeliers require boxes rated for extra weight. A standard plastic box may crack under stress, while a fan-rated metal box includes threaded inserts for secure mounting.
B. Consider Wire Capacity
Overcrowding wires can cause overheating. The National Electrical Code (NEC) specifies box volume based on the number and gauge of wires. For instance, a 14-gauge wire requires 2 cubic inches per conductor.
C. Depth and Size Requirements
Shallow boxes (1.5” deep) work for single switches or outlets, while deeper boxes (3”+) accommodate multiple wires or smart devices like dimmers. Always leave space for future upgrades.
4. Step-by-Step Installation Guide
A. Turn Off Power and Prepare the Area
-
Shut off electricity at the circuit breaker and use a voltage tester to confirm wires are dead.
-
Mark the installation location on the wall or ceiling.
B. Secure the Box
-
New Construction: Nail or screw the box to a stud or joist.
-
Retrofit: Cut a hole in the drywall, insert the box, and tighten the mounting clamps until snug.
C. Connect Wires Safely
-
Strip wire insulation to expose ½” of copper.
-
Use wire nuts to join conductors (black to black, white to white, ground to ground).
-
Fold wires neatly into the box, ensuring no bare copper touches the box’s metal edges.
D. Attach the Cover Plate
Install a blank cover for junction boxes or a switch/outlet plate as needed.
5. Common Mistakes to Avoid
-
Skipping the Box: Never hide connections behind walls—this violates codes and poses fire hazards.
-
Mismatched Box and Fixture: Using a standard box for heavy fixtures risks collapse.
-
Ignoring Fill Capacity: Overstuffed boxes trap heat. Calculate volume using NEC guidelines.
-
Poor Grounding: Ensure metal boxes are grounded by attaching the circuit’s ground wire to the box’s screw.
6. Maintaining and Upgrading Electrical Boxes
-
Routine Checks: Inspect for cracks, rust, or loose wires during annual maintenance.
-
Upgrading for Smart Homes: Replace old boxes with deeper models to fit smart switches or USB outlets.
-
Weatherproofing Outdoor Boxes: Apply silicone sealant around conduit entries to prevent moisture ingress.
7. Future Trends in Electrical Box Design
-
Expandable Modular Boxes: Adjustable compartments for evolving smart home tech.
-
Fire-Resistant Materials: Boxes with intumescent coatings that expand during fires to block flames.
-
Integrated Cable Management: Built-in clips or channels to organize wires effortlessly.
Final Thoughts
Electrical boxes may seem like a minor detail, but they’re foundational to a safe, functional home. Prioritize quality materials, correct sizing, and adherence to local codes. Whether you’re a DIY enthusiast or hiring a pro, understanding these basics ensures your electrical system remains reliable for years to come. Start by auditing existing boxes in your home—replace damaged ones, upgrade where needed, and never cut corners on safety.
