What is a Power Surge?
A power surge, also called a transient voltage surge or transient overvoltage, is a short-duration increase in the supply voltage well above the designed voltage level. It may last a few nanoseconds to minutes and can occur in both AC and DC power supplies. Power surges can arise due to lightning striking nearby electric poles, switching of heavy loads, and downed or swinging power lines.
Types of Power Surges
There are two main types of power Surge Protection Devices based on their duration and severity:
Impulse Surges: These surges have very short durations ranging from microseconds to milliseconds but with magnitudes many times the normal voltages. They are typically caused by lightning strikes, power line switching, and electrostatic discharges.
Oscillatory Surges: These surges have relatively longer durations from milliseconds to seconds, with magnitudes up to two or three times the normal voltage level. They usually arise from events like faults clearing on the utility power system.
Damage from Power Surges
Power surges, if left unchecked, can cause serious damage to sensitive electronic equipment. Some of the common effects include:
- Component Failure: Surge voltages exceeding equipment tolerance levels can lead to dielectric breakdown and failure of components like integrated circuits, thermostats, and optoisolators.
- Circuit Damage: Surges generate heat that can destroy delicate printed circuit traces or cause solder joint failures and connector damage over time.
- Data Loss: Surges may corrupt data on memory or storage devices like hard drives, flash drives, and microcontrollers by causing bit flips.
- Accelerated Aging: Even surges below failure thresholds can decrease component reliability and lifetime through additional heat and electrical stress.
- Fire Hazard: Severe surges may cause overheating, sparks, or melt insulation—all potential fire ignition sources.
Importance of Surge Protection
Given the widespread usage of sensitive electronics in homes and businesses, it is prudent to take protective measures against the harmful effects of power surges. Some key reasons for installing surge protection include:
- Equipment Protection: By arresting surges at the point of entry, surge protection devices (SPDs) shield expensive electronics from possible damage or failure.
- Data/Information Integrity: Critical systems that store or process data require protection against surge-induced corruption that could lead to business disruptions.
- Downtime Avoidance: Equipment failures or replacements due to unprotected surges translate to lost productivity and revenue during downtime periods.
- Safety Compliance: Lightning protection systems help meet fire and life safety standards for facilities housing electronics in hazardous environments.
- Insurance Mitigation: Proper surge safeguards may relieve the insured of financial liability for surge-related damage claims covered under equipment warranties or policies.
- Legacy Equipment Support: Older electronic equipment not designed to withstand modern surge levels requires retrofit surge suppression for continued support.
How Surge Protection Works
The fundamental principle behind surge protection is diversion—redirecting damaging surge currents away from sensitive equipment to the grounding system before they cause harm. Common types of SPDs include:
- Modes 1-3 AC Line Surge Protective Devices: These plug into standard AC outlets and provide surge current diversion paths between line/neutral/ground using metal oxide varistors (MOVs) or silicone carbide diversion arrays.

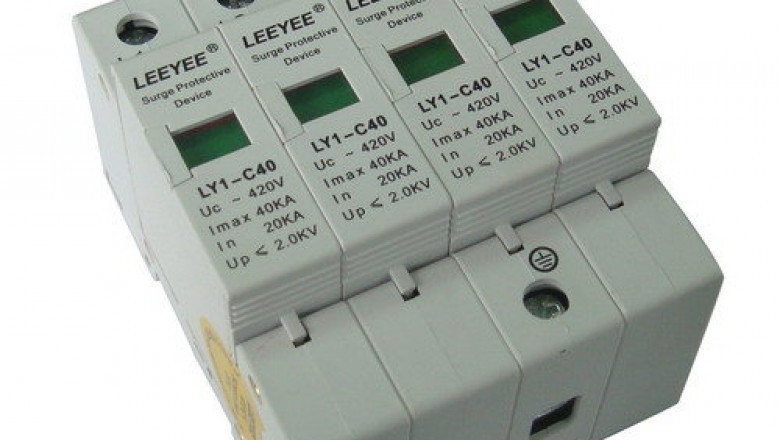

- Mode 1+2 Whole Home Surge Protectors: Installed at the main service panel, these protect all downstream circuits with high surge current capacity of tens of kiloamps using gas discharge tubes and zinc oxide arrestors.
- Point of Use Surge Protectors: These small inline filters plug directly into equipment power cords to shield against localized surges with thermally protected MOVs or thyristors rated to several hundred volts.
- Isolated Ground Receptacles: Used for equipment sensitive to ground potential differences, they ensure low impedance equipotential bonding during surges through an isolated secondary grounding system.
No surge protection system is 100% guaranteed, but properly designed, selected, installed and maintained units provide a robust first line of defense against incoming surges at vulnerable entry points. Coordinated whole facility protection using multiple SPD types maximizes surge immunity.
Proper Surge Protection Installation and Maintenance
For best performance, surge protectors require careful handling and maintenance to avoid defeating their purpose. Some best practices include:
- Following manufacturer instructions for correct mounting and wiring terminations. Improper installation can compromise the protection rating.
- Using short, direct cable runs between SPDs and equipment to minimize lead inductance from incoming surges. Do not coil or bundle cables.
- Periodically inspecting and testing SPDs to verify continued proper operation, especially after surges or power disturbances. Replace expired units.
- Providing dedicated overcurrent protection for external wiring runs to SPDs as per NEC code to prevent fire hazards during fault conditions.
- Bonding all shielded cable runs to the same local earth grounding system as SPDs to minimize ground loop potentials during surges.
- Regularly cleaning dust buildup from heat sinks and ventilation paths of thermistor-controlled or fan-cooled SPD units per manual guidelines.
- Labeling SPDs clearly for easy identification during service outages or facility modifications. Maintain commissioning records for warranty compliance.
With judicious selection and proper installation practices, surge protectors offer an effective solution to safeguard electronics from damaging power disturbances ubiquitous in today's electrically sophisticated world. Implementing a comprehensive transient voltage
